SPECIFICATIONS

SPECIFICATIONS

A 22kW Siemens Square Body Motor with Gearbox will be used.

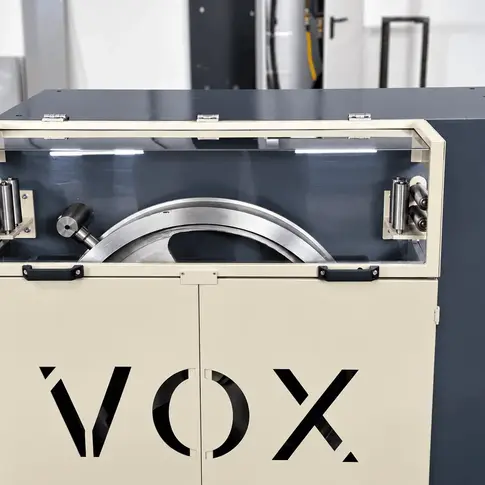

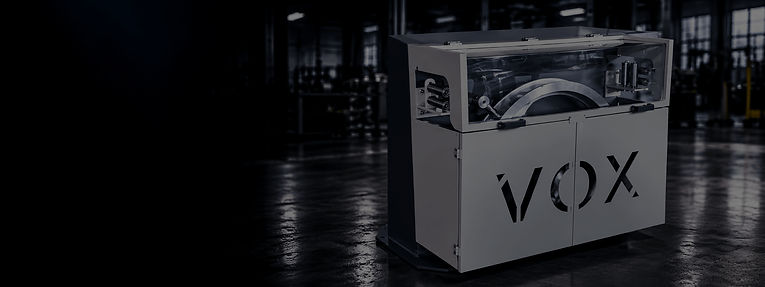

CAPSTAN

​

  • Capstan pulley diameter: 900 mm

  • Capstan pulley made of aluminum casting

  • 22kW Siemens Square Body Motor with Gearbox

  • Maximum line speed: 1100 m/min

  • Size 130 gearbox

  • Belt pressure system on the capstan pulley to prevent insulation slippage

  • Cylinder guide for centering the capstan pulley

  • Guide rollers at the entry and exit of the capstan

  • Safety guard and protection systems
